CT350 – In-Situ Tensile & Compression Stage for X-ray CT

In association with the major manufacturers µXCT systems including Zeiss, RX Solutions, Tescan/XRE, Nikon, Thermo Fisher Scientific and Waygate/GE we are now able to offer an integrated tensile testing solution for your µXCT application. Using tensile testing with µXCT provides a clear visual interpretation of how the properties of materials and composites change under different loading conditions. The compact design of these testing stages allow them to be used with the smallest high resolution micro CT systems providing a range of tensile and compression stages with forces up to 20kN and resolutions down to 25mN.

Systems are controlled with front panel control for temperature display and control.

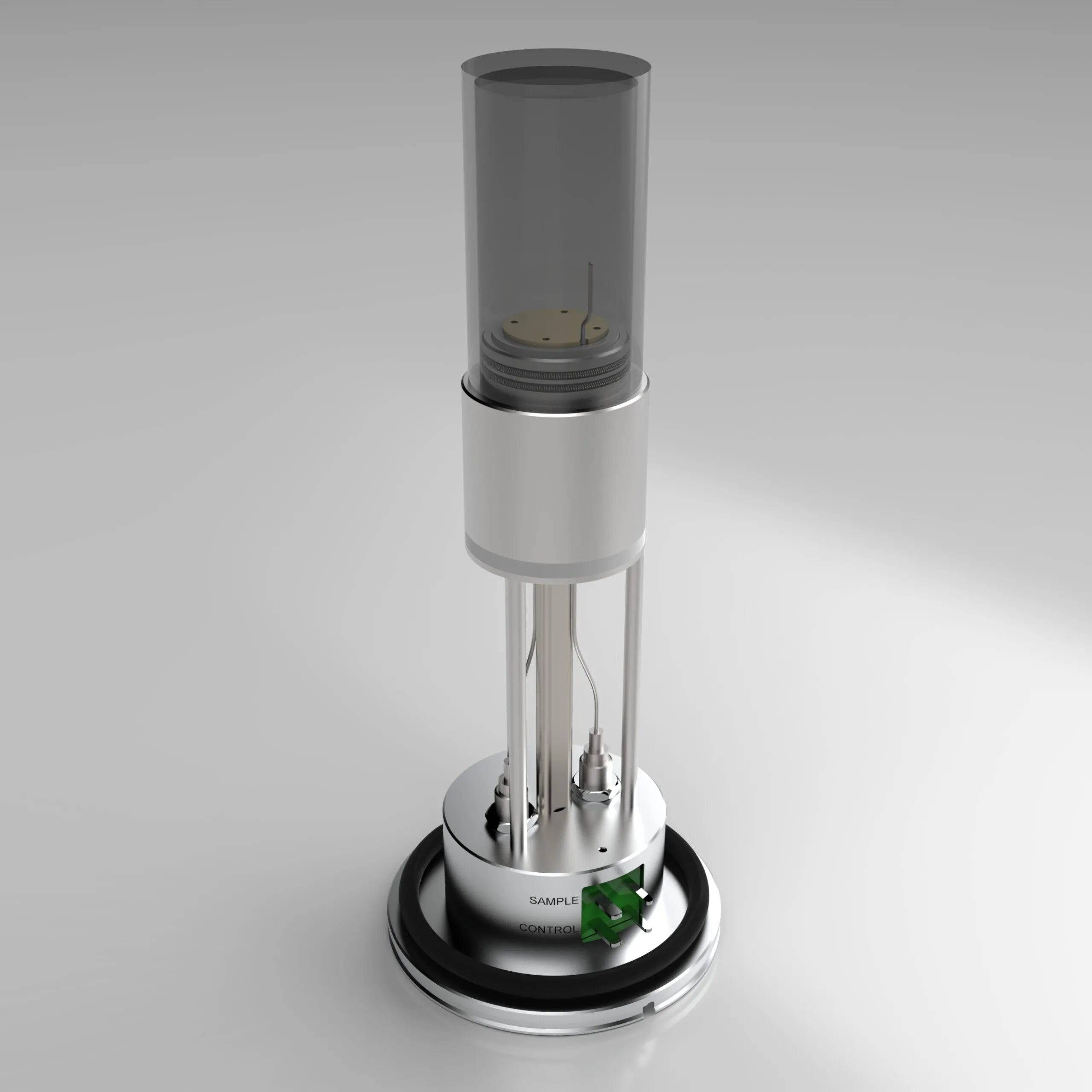

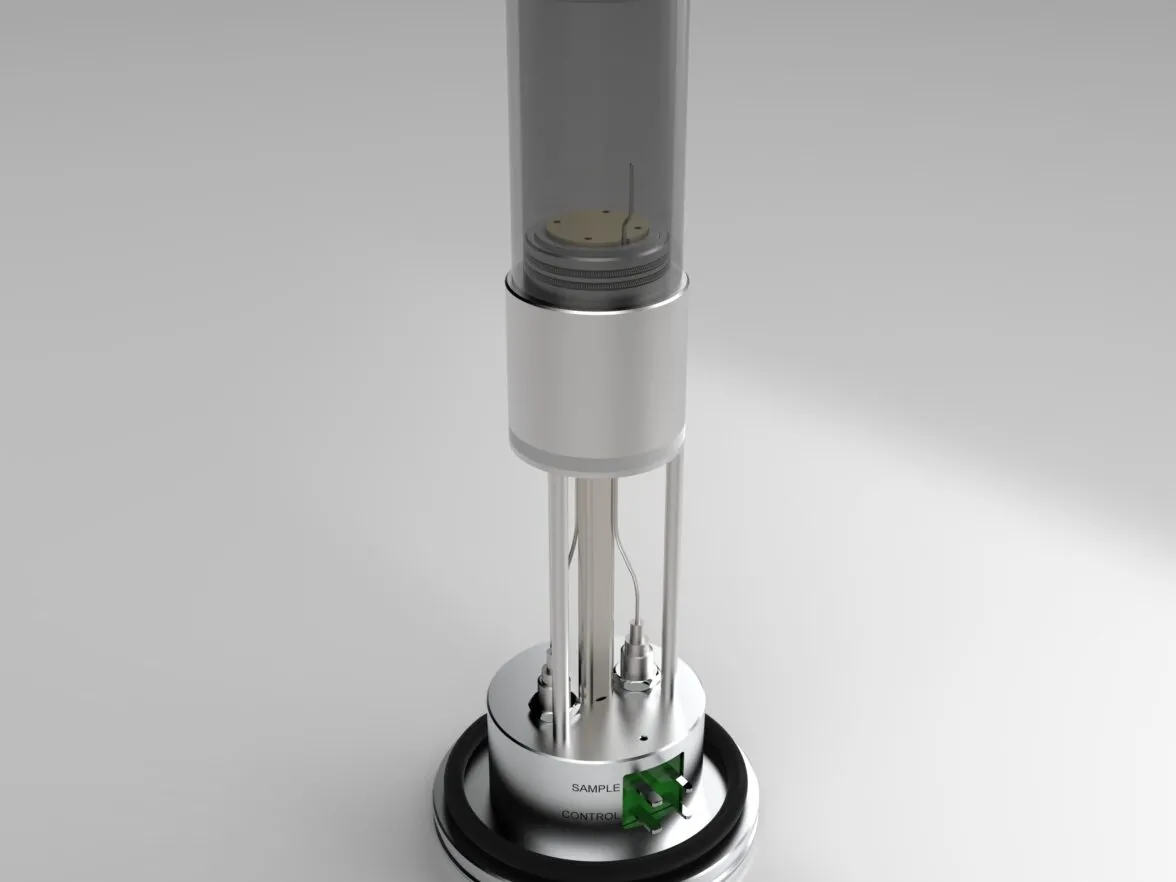

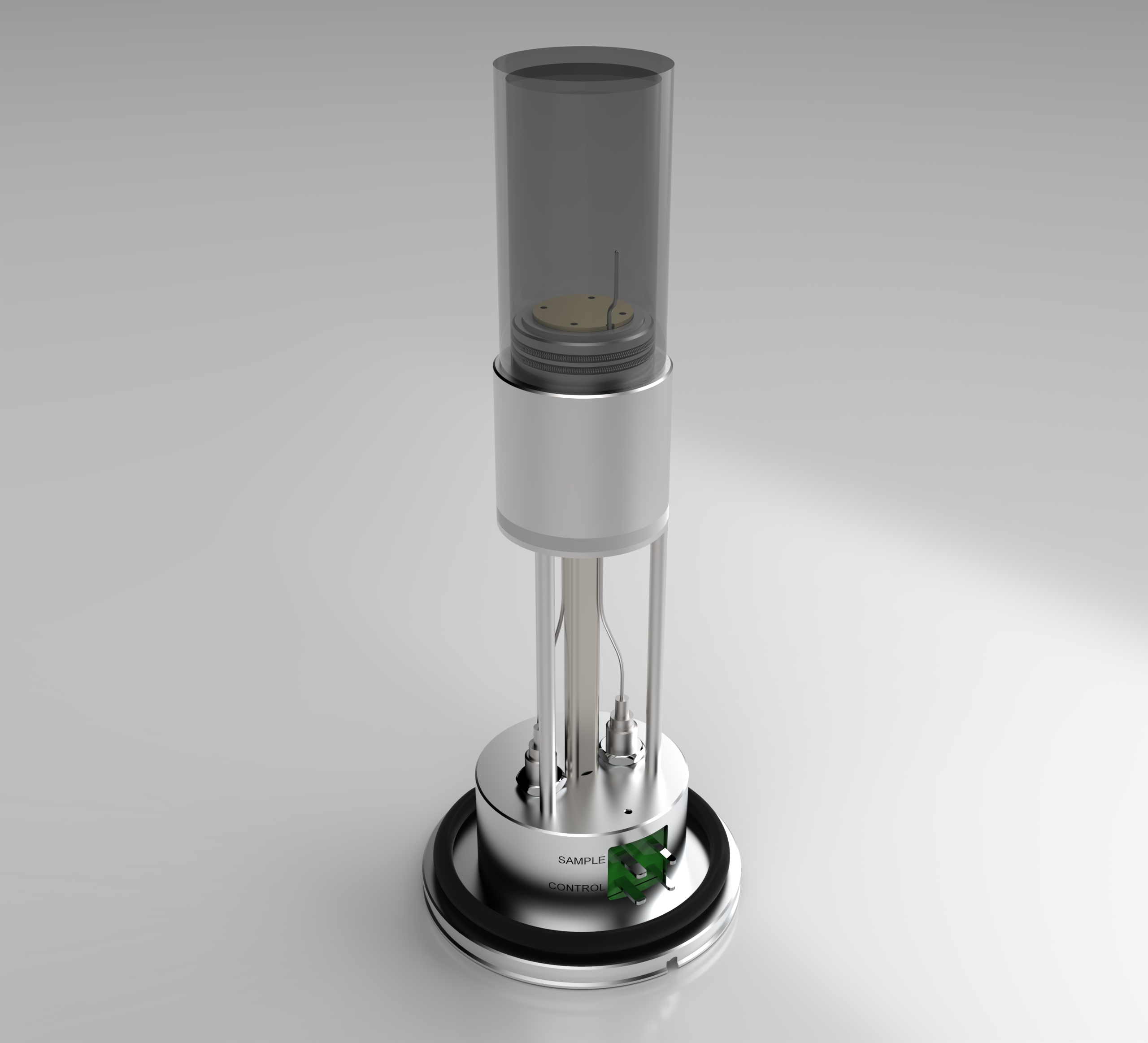

The CT350 heating stage provides controlled sample heating from room temperature up to +350 °C during CT imaging, enabling high-temperature in-situ mechanical testing and observation of thermally induced material behaviour.

Further details and pricing is available from your micro CT supplier or direct from Deben.

Also available is a stage without tensile capability, providing heating/cooling only. This stage can be used for observing small frozen samples or samples at elevated temperatures.

Features

- Temperature range ambient to +350°C at atmospheric pressure and ambient temperature at or below 20°C
- Temperature accuracy ±1.5°C or 2%, whichever is the greatest
- Temperature display resolution 1°C, temperature stability ±0.2°C
- Maximum heating rate 10°C per minute
- Simultaneous display of actual and target temperature
- Dimensions: 102mm x 225mm (Max. OD, H)
- Weight: 780g approx.
- Front panel control
