Microtest™ MT200P Tensile and Compression Stages for Life Sciences

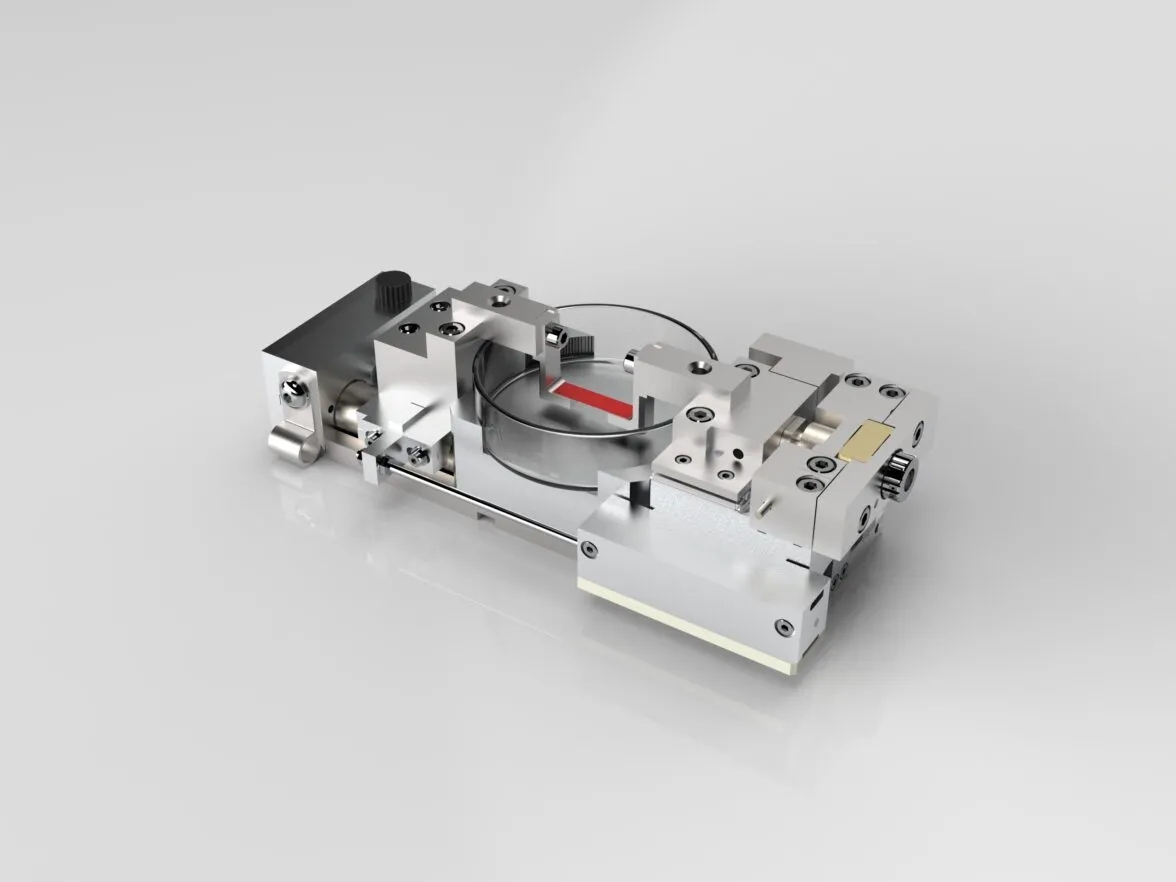

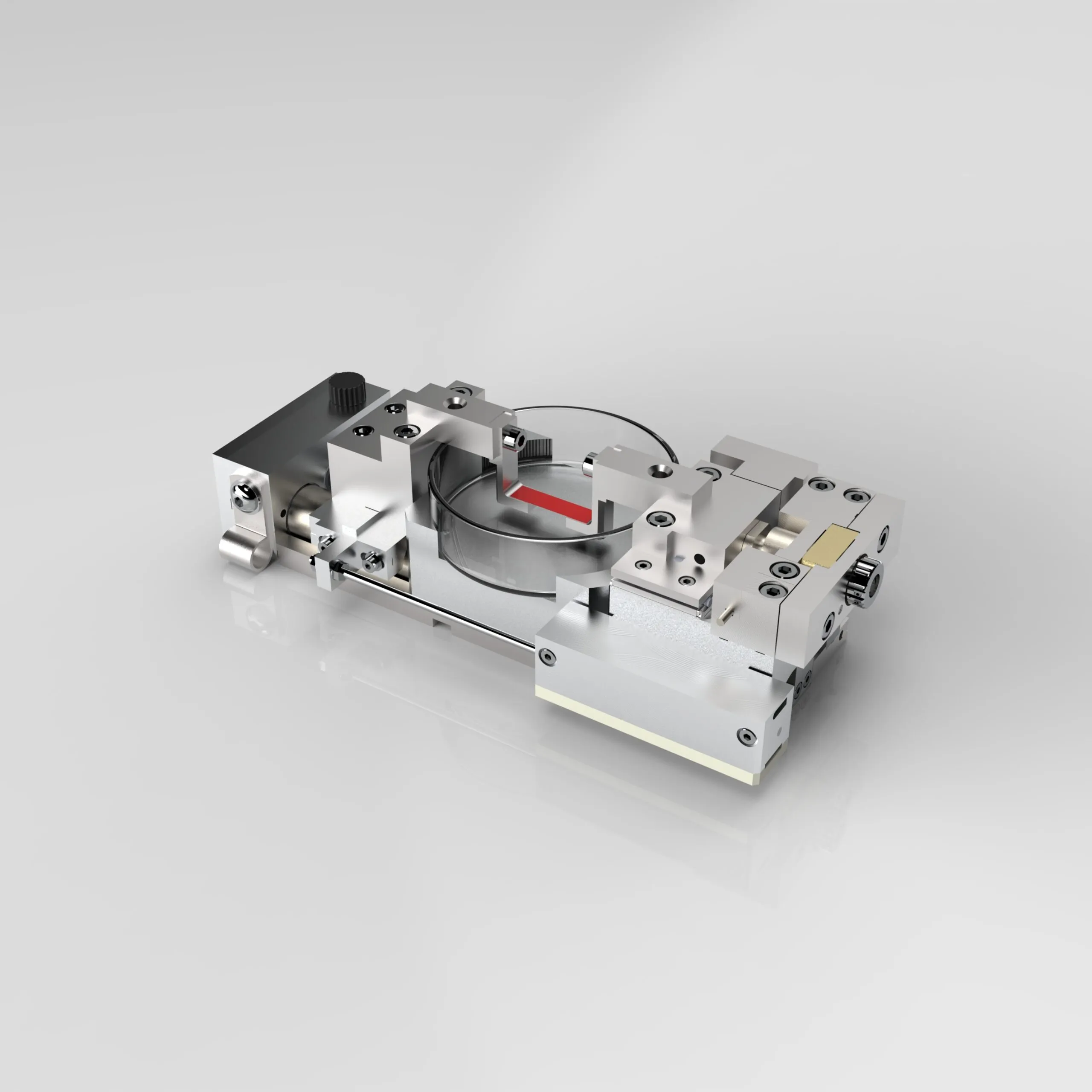

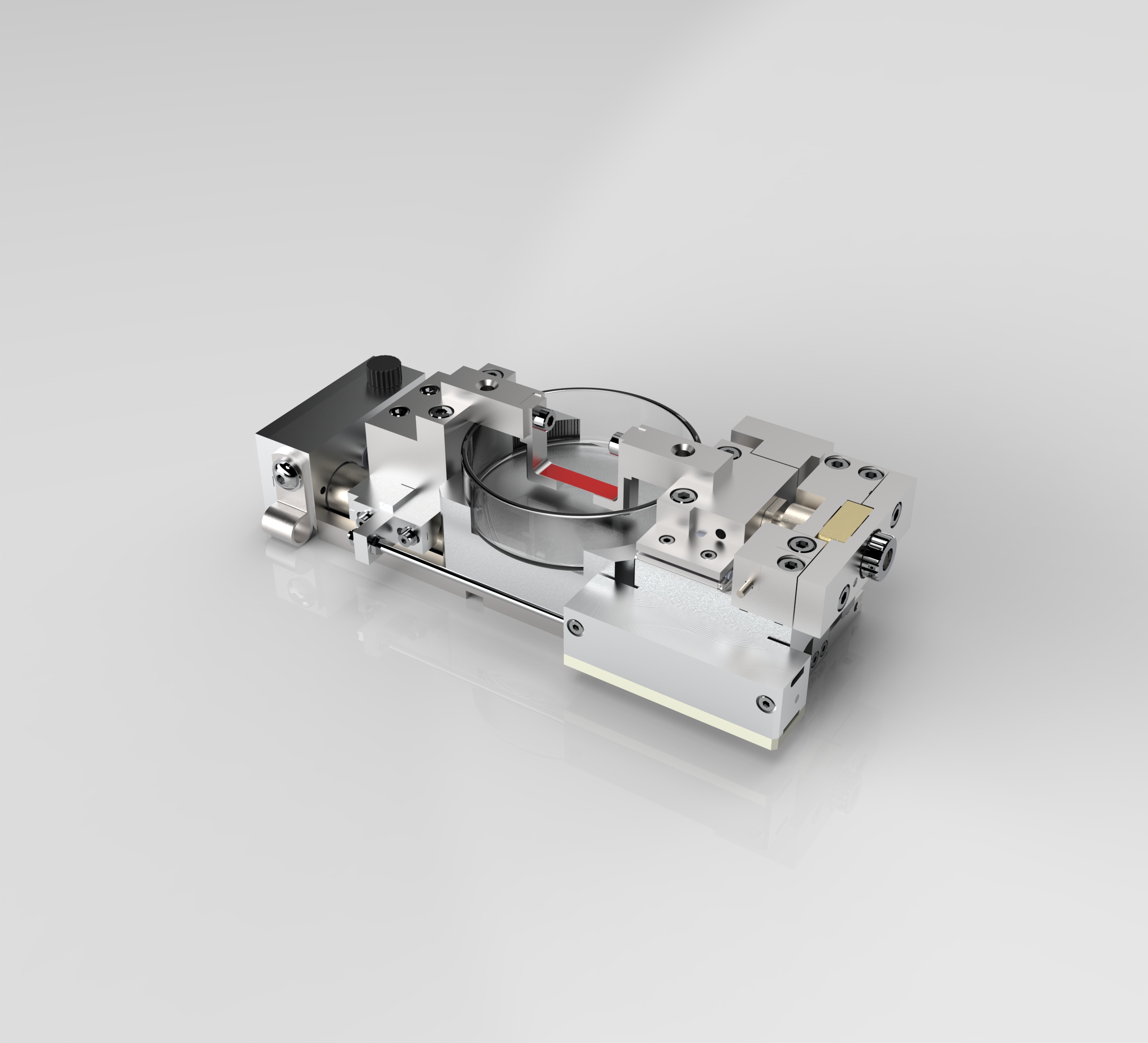

The MT200P is a compact tensile and compression stage specifically designed for testing samples within a Petri dish environment. This configuration makes it ideal for biological materials, hydrogels, and other samples requiring immersion or controlled fluid conditions.
Samples are mounted horizontally and secured using precision grips, allowing stable and repeatable mechanical testing while remaining within the dish. The system provides controlled displacement over a travel range of up to 20 mm, with typical gauge lengths of 30–50 mm.
Optimised for use with optical microscopy, the MT200P enables real-time observation of sample deformation in liquid or ambient conditions. A heating option is available, allowing temperature control up to 60 °C for studies requiring elevated temperatures.
Features
MT200P:
-
- 200N tensile and compression testing stage with precision slides and symmetrical stainless-steel leadscrew
- 200N loadcell, linearity ±1% of full-scale range
- Extensometer for position readout, 3µm resolution
- Accuracy ±0.5%, dynamic resolution 1%, static resolution 0.05% of full-scale range
- Standard speed range: 1mm/min. to 1.50mm/min.
- Travel: 20mm, standard gauge length: 30-50mm
- Maximum sample size: 50mm x 15mm x 10mm (L, W, H)
- Approx dimensions: 131mm x 62mm x 31mm (L, W, H)
- Weight: 570g approx.
- MICROTEST™ software control

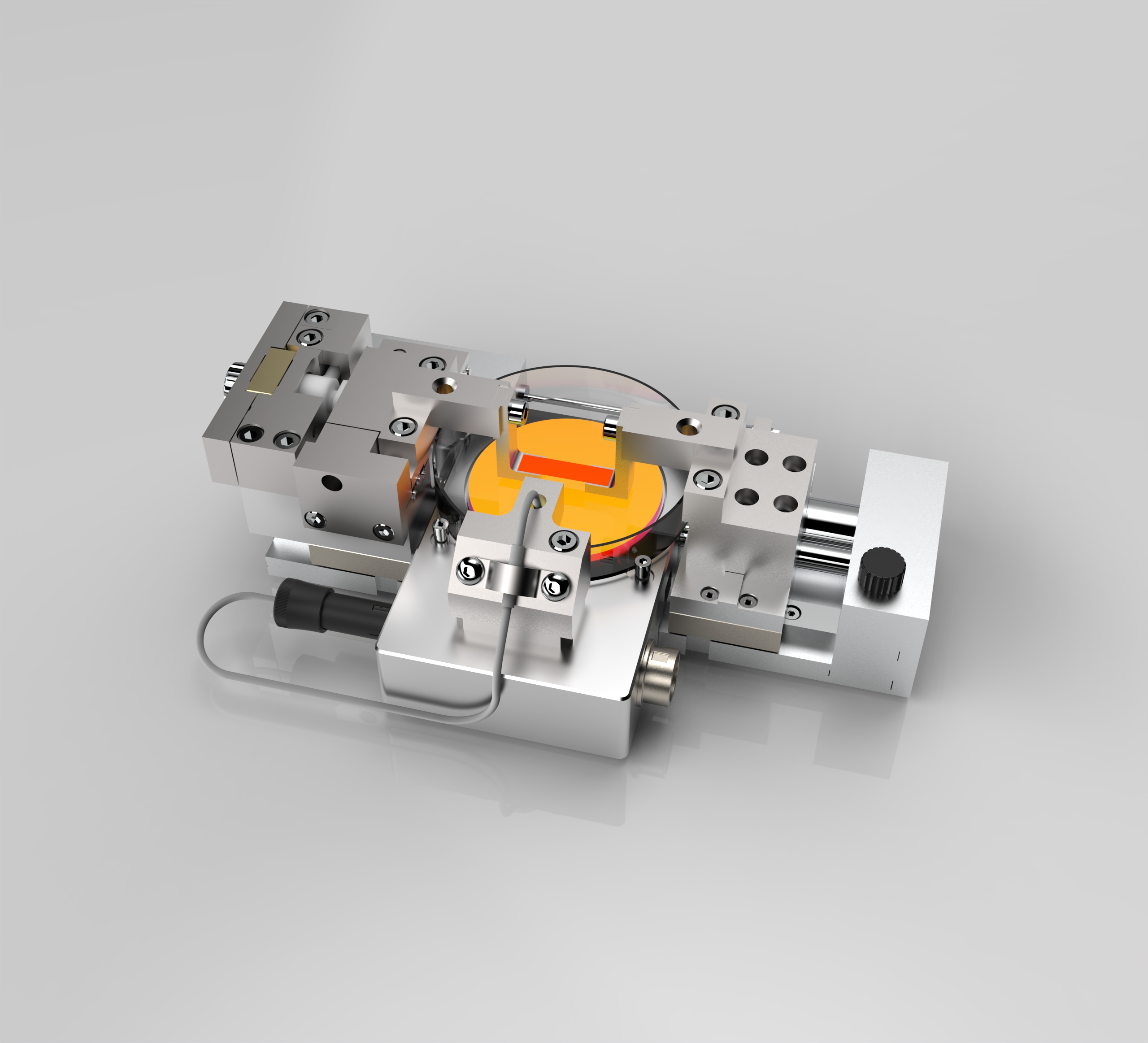

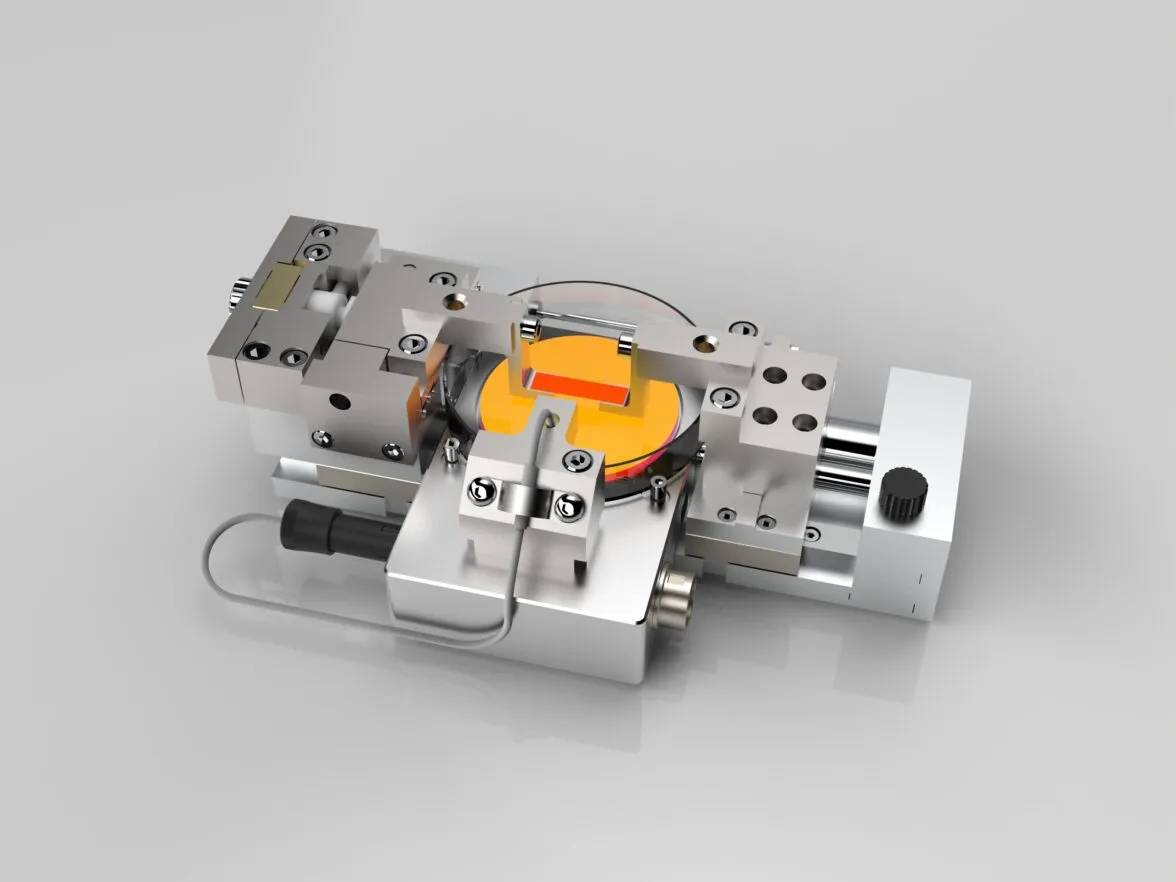

MT200PH:
-
- 200N tensile and compression testing stage with precision slides and symmetrical stainless-steel leadscrew
- 200N loadcell, linearity ±1% of full-scale range
- Extensometer for position readout, 3µm resolution
- Heater module with temperature range from ambient to +60°C
- Accuracy ±0.5%, dynamic resolution 1%, static resolution 0.05% of full-scale range
- Standard speed range: 1mm/min. to 1.50mm/min.
- Travel: 20mm, standard gauge length: 30-50mm
- Maximum sample size: 50mm x15mm x 10mm (L, W, H)
- Approx dimensions: 131mm x 62mm x31mm (L, W, H)
- Weight: 910g approx.
- MICROTEST™ software control
