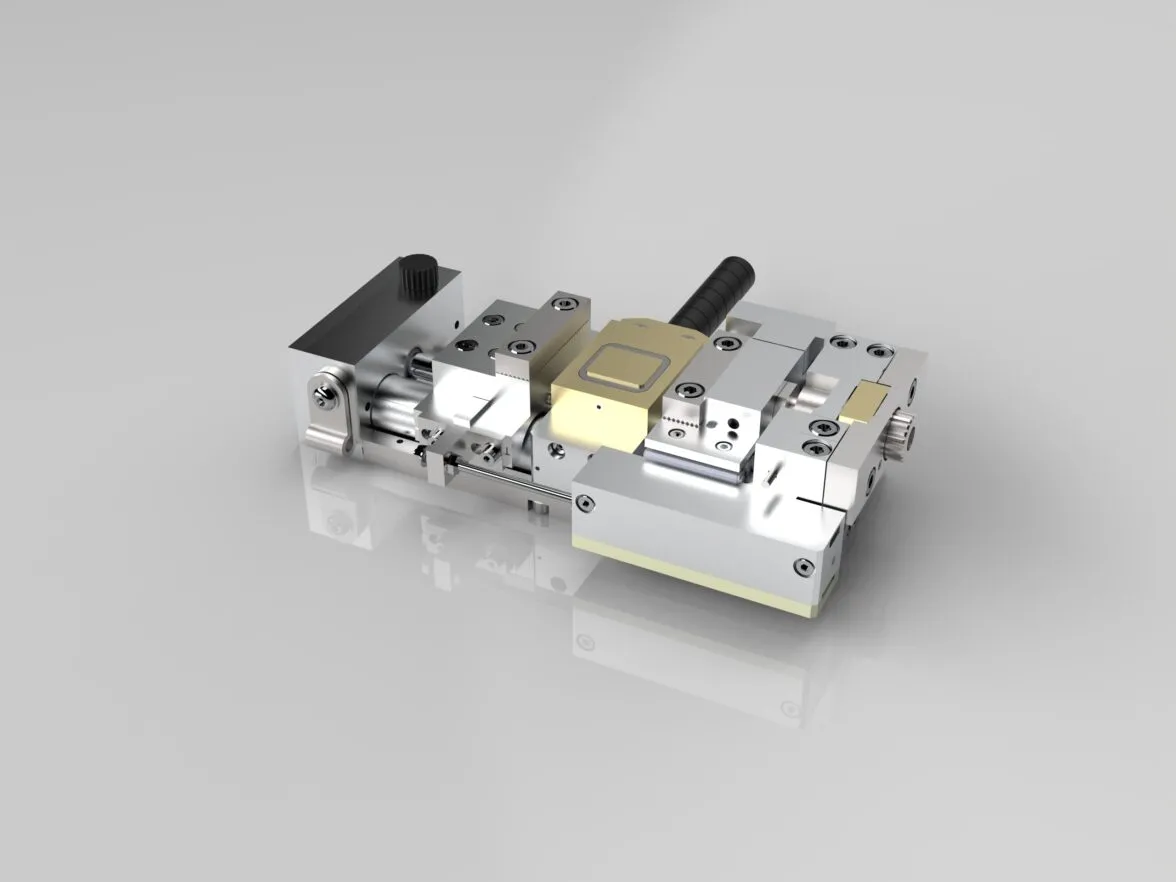

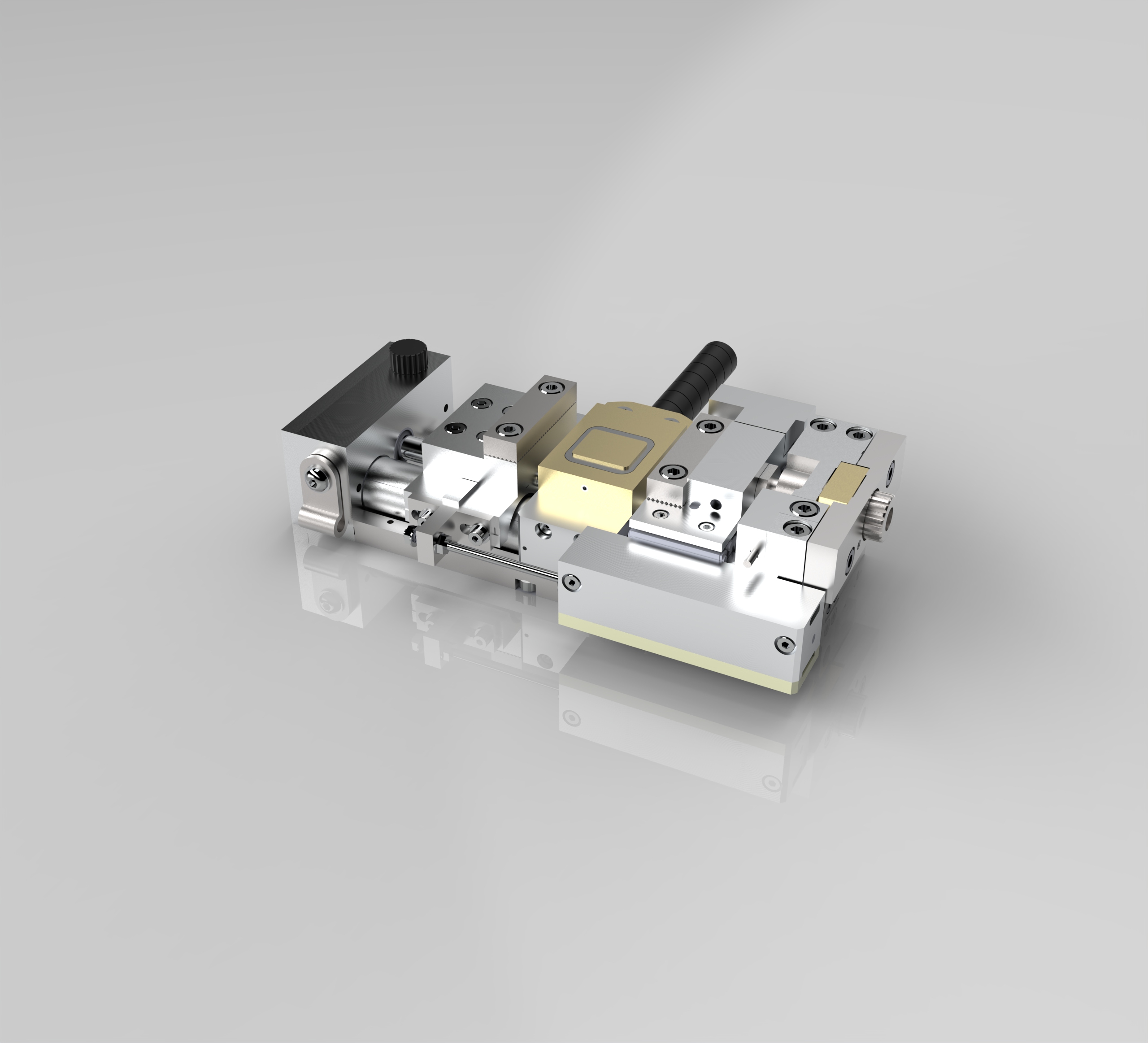

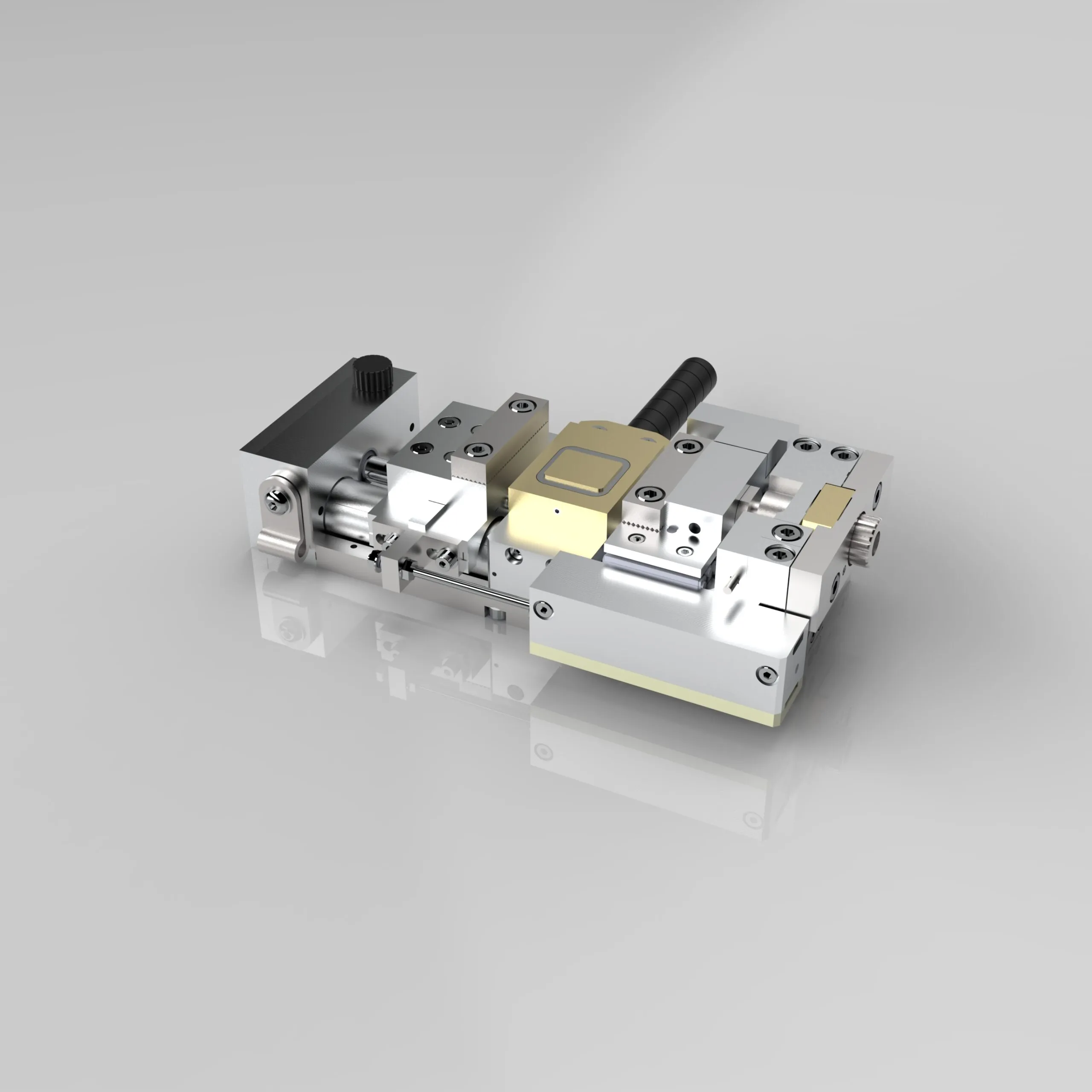

Microtest MT200VT Variable Temperature Tensile and Compression Stage

Microtest™ 200N stages have been specifically designed to allow real time observation of the high stress region of a sample with an SEM, optical microscope, AFM or XRD system. With dual threaded leadscrews the centre of the specimen stays centrally located. Loadcells from 2N to 200N cover most applications, with extension rates from 0.1mm/min to 15mm/min. All stages have linear scales for elongation measurement and optical encoders for speed control. Windows software sets drive parameters and displays the stress/strain curve live on the computer screen. Options include three and four point bending clamps, fibre clamps and microscope mounting adaptors. Special versions of the stage can be manufactured to customer requirements. Stages are controlled from our Microtest tensile testing software.

The 200N tensile stage uses miniature loadcells in the range 2N to 200N. Samples are mounted horizontally, clamped to a pair of jaws and supported on stainless steel sliding bearings. A dual threaded leadscrew drives both jaws symmetrically in opposite directions, keeping the sample centered in the field of view. The 200N module is ideally suited for use with an SEM, optical microscope or AFM and will easily fit on most stages. Travel is 10mm by default with 20mm optionally available. Temperature control of your sample from -20°C to +160°C.
