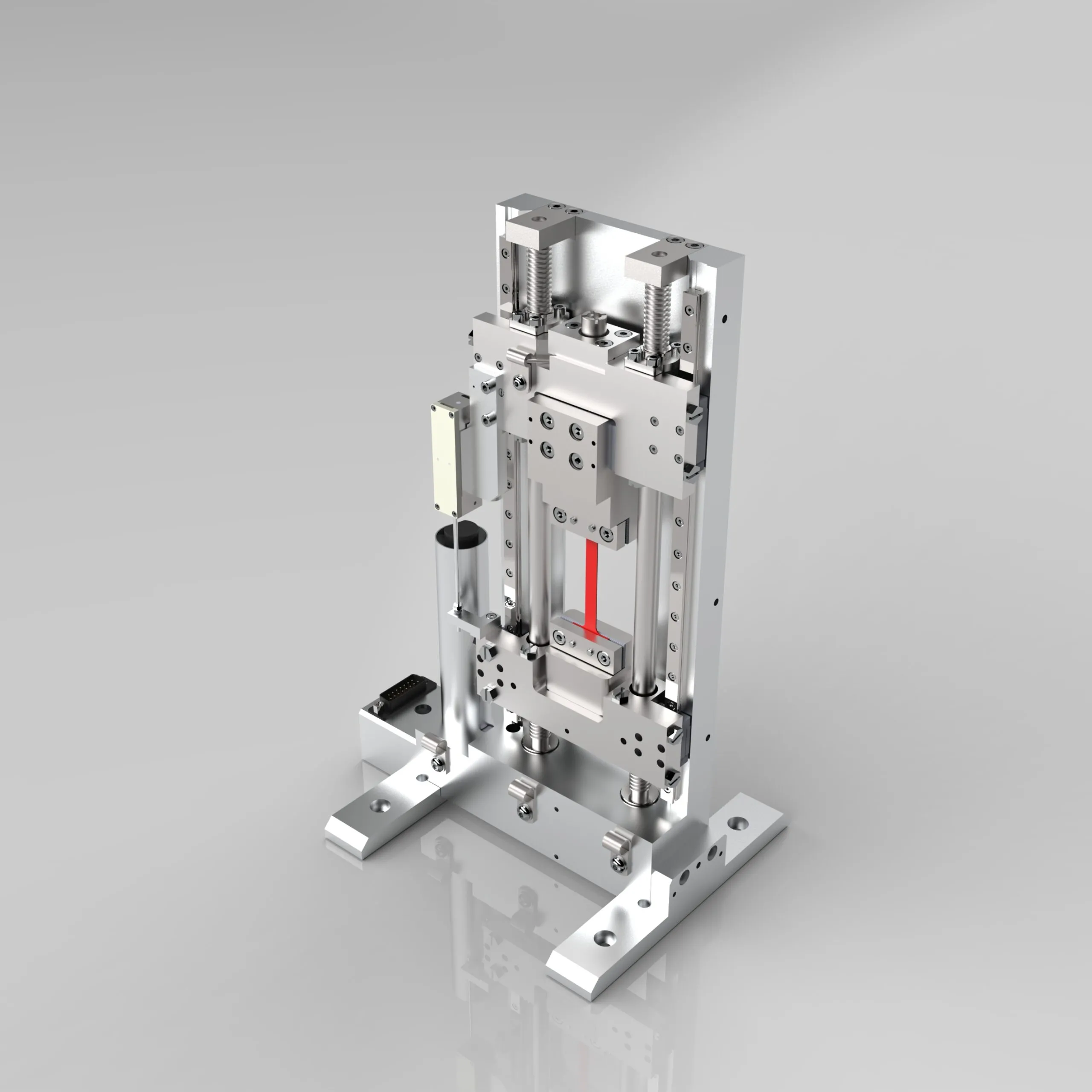

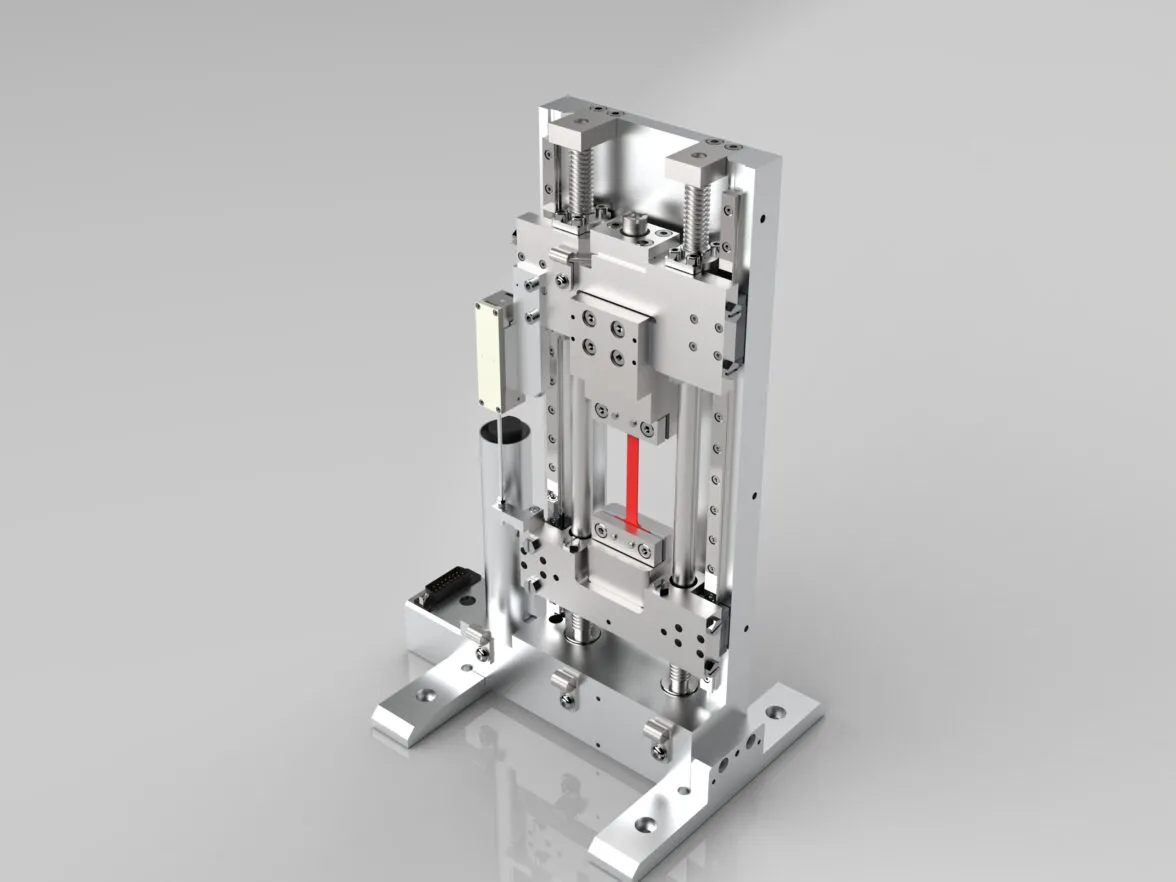

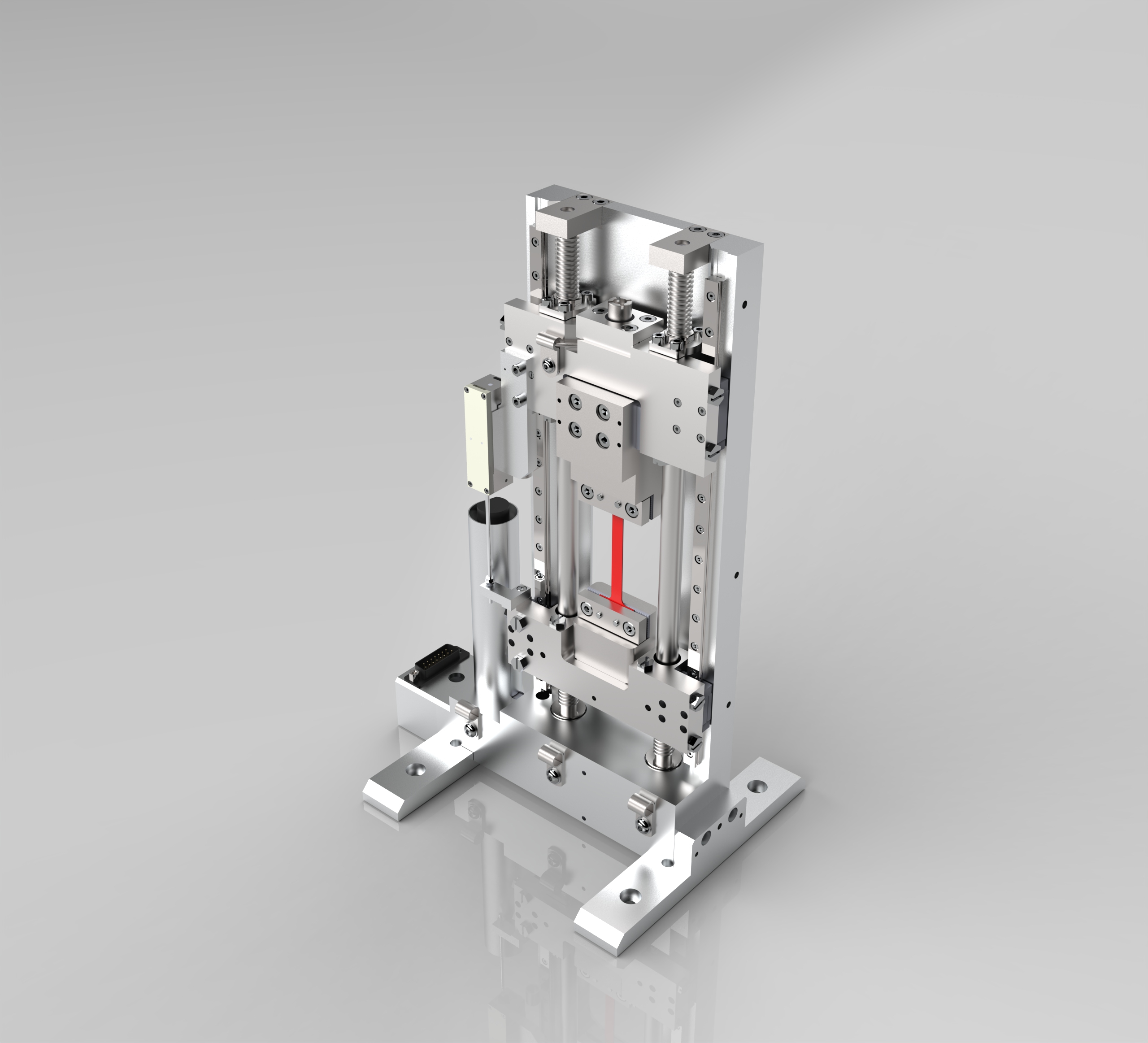

Microtest™ MT5000DL Tensile and Compression Stage
The dual leadscrew stage has been designed to allow both transmitted and reflected illumination and can be fitted to an optical microscope, XRD system or Synchrotron. Supplied with feet the stage can stand vertically like a conventional tensile tester or with the feet removed it will sit flat on a bench or optical microscope stage. Versions with maximum loading to 2kN or 5kN are available, with optional loadcells of 500N and 1kN. Sample clamps are removable allowing easy customisation and the fitting of special clamps for different samples. We can supply fibre clamps, three and four point bending clamps and clamps to hold specifically shaped specimens. Optionally the stage can be supplied with temperature controllers and either heated or heated and cooled specimen clamps with a variable temperature range of -150˚C to 550˚C.
Features
-
- Horizontally or vertically mounted stage with void in rear for transmission observation
- Tensile and compression testing; compression platen supplied
- Precision slides with dual symmetrical stainless-steel
- 5kN loadcell, linearity ±1% of working range
- Accuracy ±0.5%, dynamic resolution 1%, static resolution 0.05% of full-scale range
- Extensometer for position readout, 300nm resolution
- Linear extensometer for position readout
- Standard speed range of 1mm/min. to 1.0mm/min.
- travel 20mm (50-70mm between jaws) {other range can be specified}
- Dimensions: 173mm x 43mm x 316mm (L, W, H)
- Weight: 6.6kg approx.
- MICROTEST™ software control
