MT5000EH Product Details

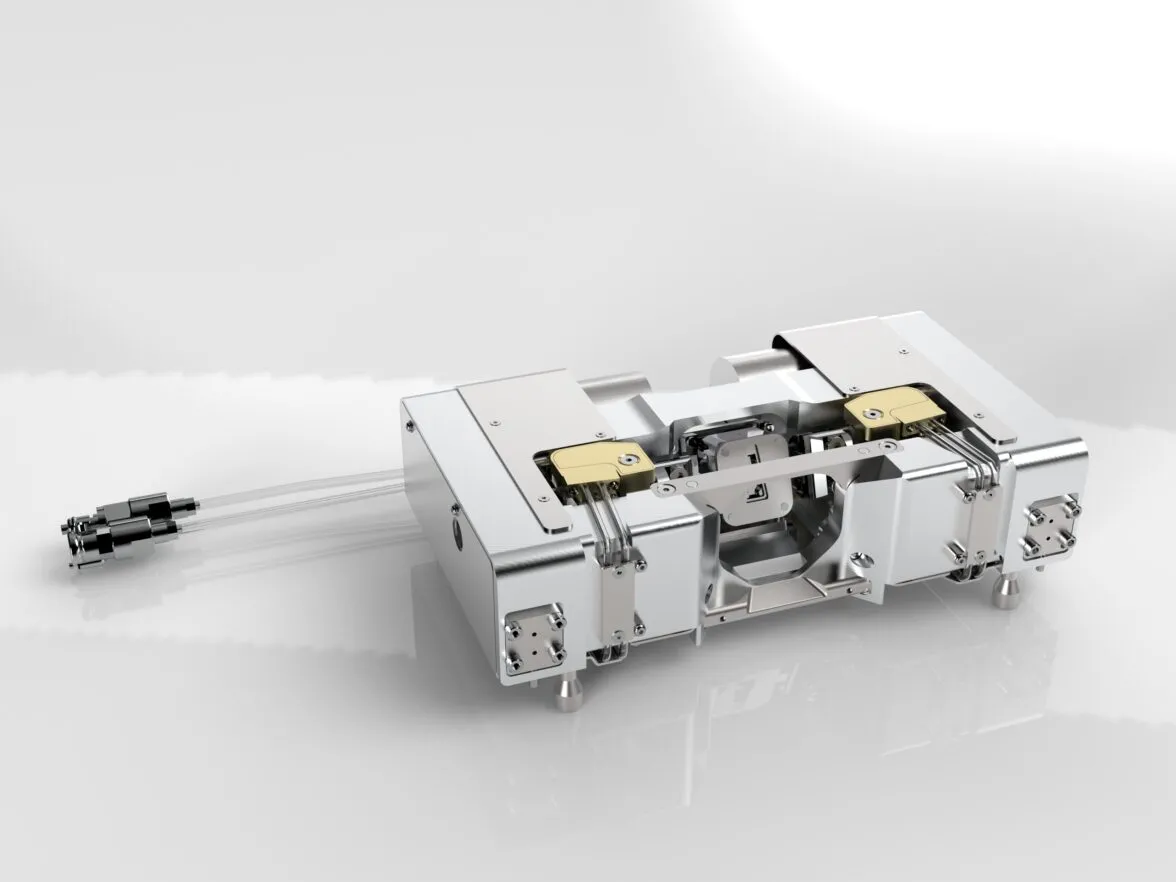

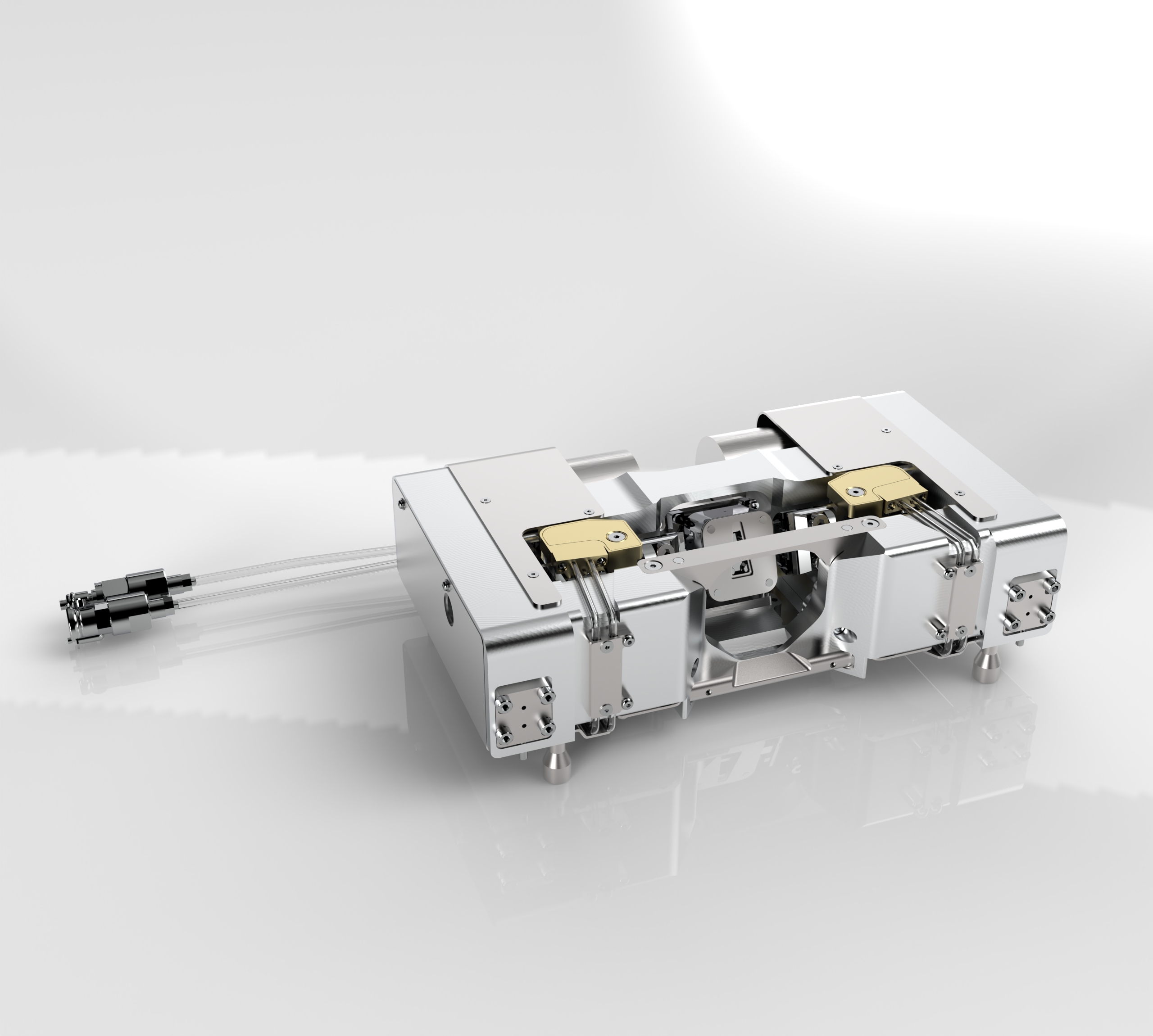

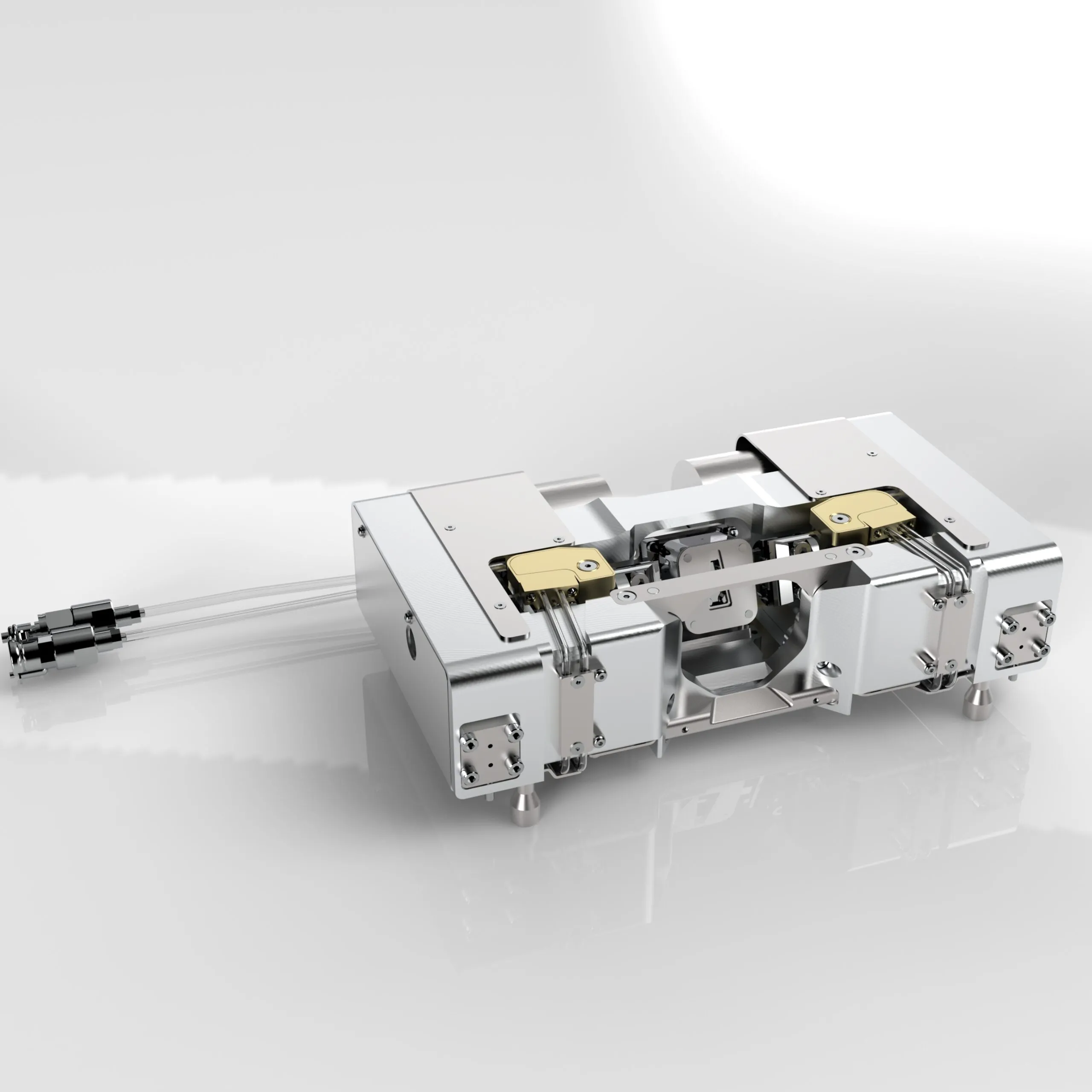

The identification of slip bands, strain marks, deformations, dislocations and crystalline defects are now possible within your SEM under varying test conditions, allowing characterisation of sample microstructure in real-time. Whether you wish to run room temperature experiments or achieve high temperature compression and tensile testing, the MT5000EH EBSD stage delivers – fully optimised for both Horizontal SEM Imaging and EBSD.

With force resolution less than 0.003% FS, the 5kN EBSD stage from Deben offers dual motor control, user exchangeable loadcells and jaws, and options for bending jaws and compression cage.

The newly developed ‘Deben Test Suite’ software also allows full control of your stage and data, and is designed with ease-of-use in mind no matter what EBSD detector or SEM you use.

Deben’s in-house design and manufacturing teams also allow bespoke and custom clamps and jaws, to suit your sample needs.

Features

Horizontally mounted dual-motor tensile and compression testing stage
5kN tensile to 5kN compression (Continuous)
5kN loadcell, linearity ±0.5% of full-scale range
Force resolution better than 01% FS
Dual optical extensometers for position readout, resolution 100nm
Motor speed (per jaw): 55µm/s – 15µm/s (0.033mm/min. – 0.9mm/min.)
Motor speed (combined): 1µm/s – 30µm/s (0.067mm/min. – 1.8mm/min.)
Maximum travel: 20mm (30 to 50mm between jaws)
Dual motor allows independent or dual jaw movement
Maximum heater temperature 1000°C:
- Water cooled (including chiller)
- Standalone heating controller
User Exchangeable Flat Sample Jaws and 70° tilt EBSD Jaws
EBSD 70° jaw position has clear line of sight to SEM lens and EBSD detector with no shadowing
EBSD and Horizontal sample dimensions:
- Gauge length 30-50mm, sample clamping length 10mm each end, maximum width 5mm
Dimensions: 225mm x 132mm x 66mm (L, W, H)
Weight: 3kg approx.
DEBEN TEST SUITE™ software control
