SEM Chamberscope

Chamberscope

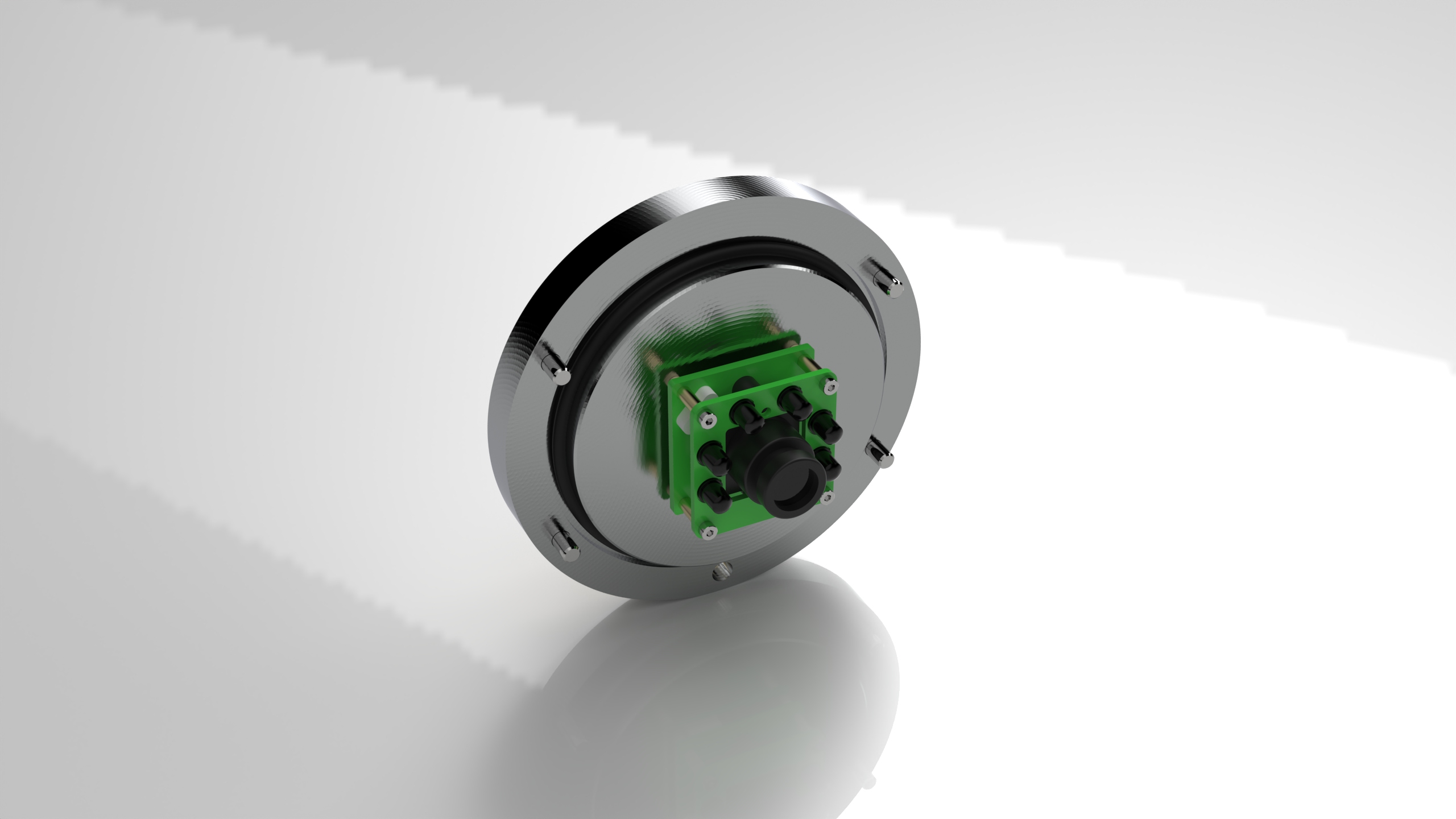

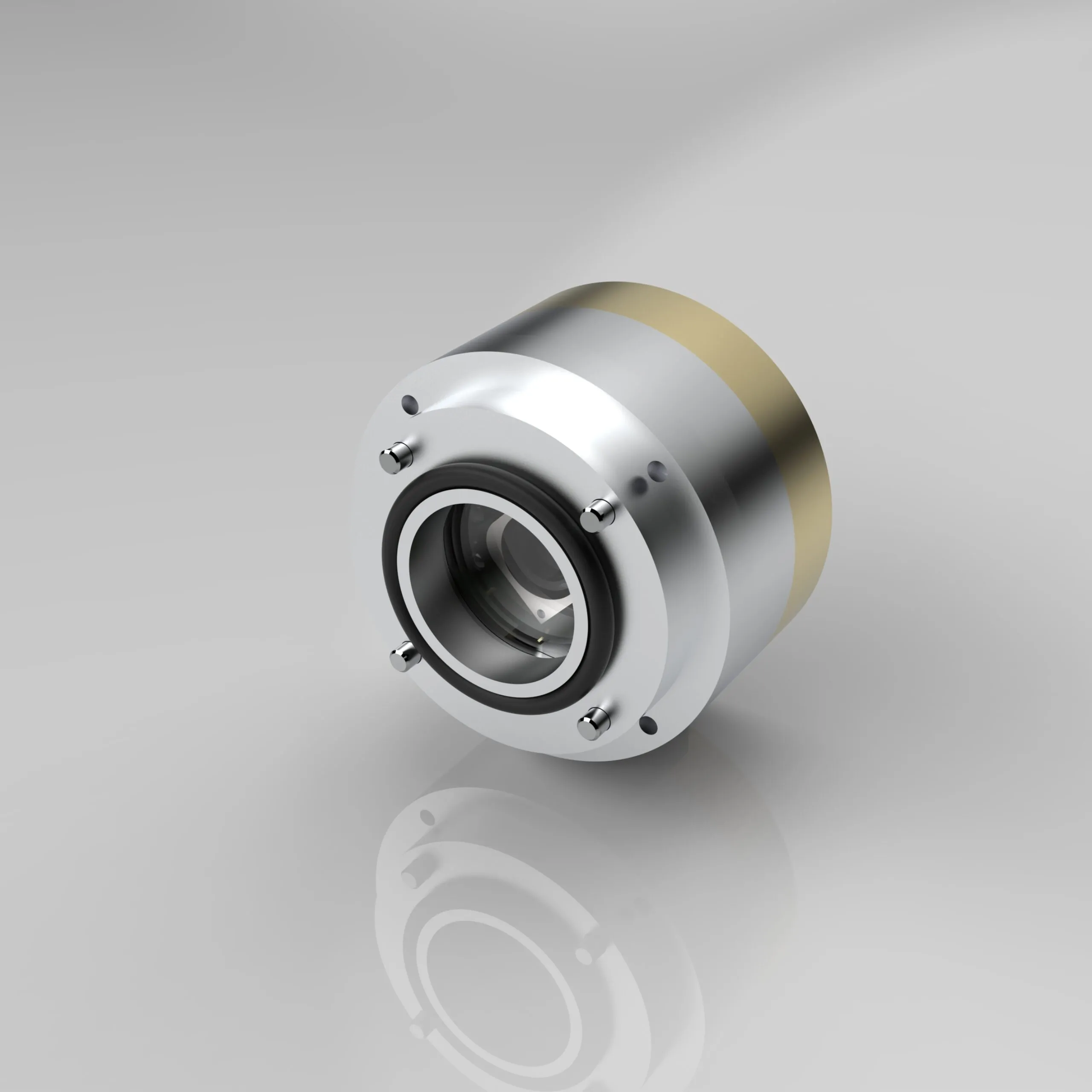

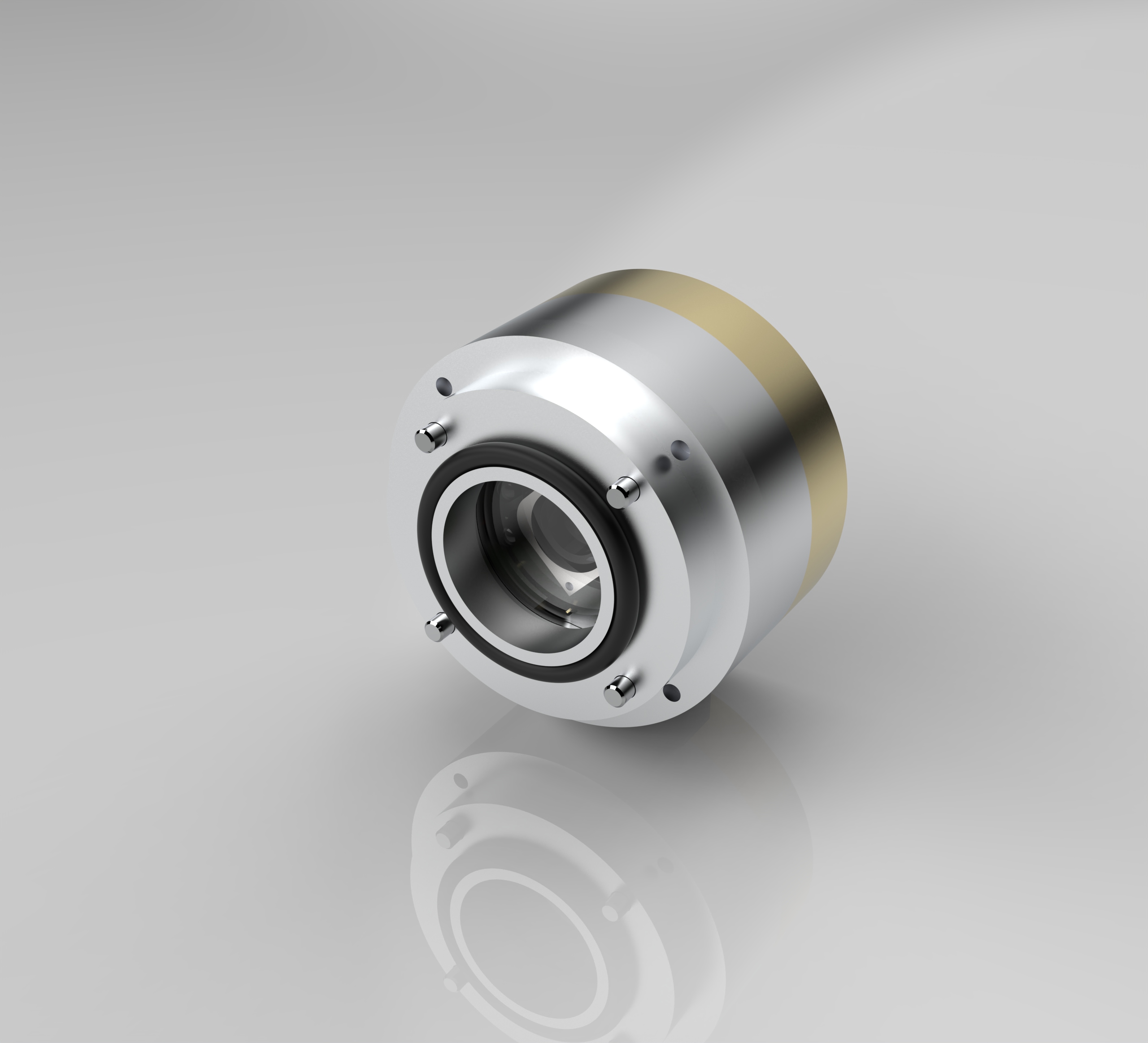

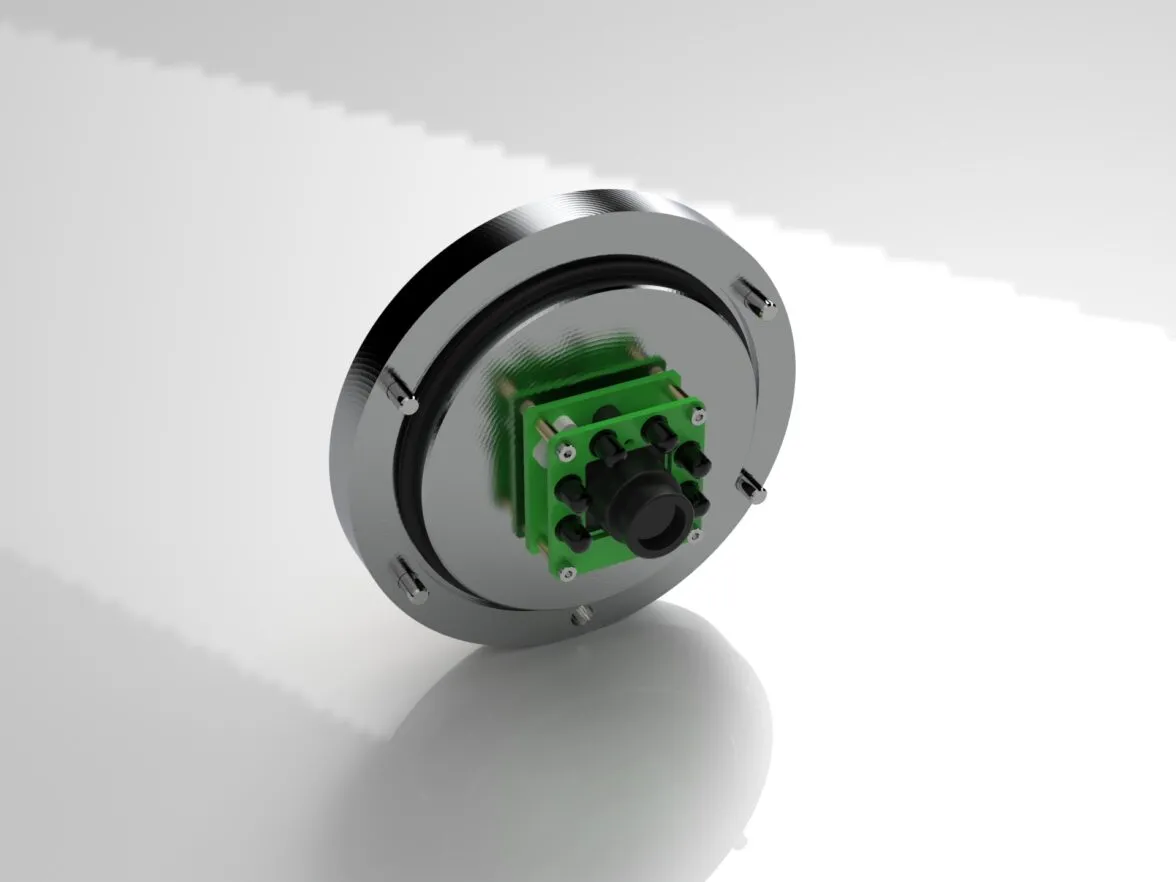

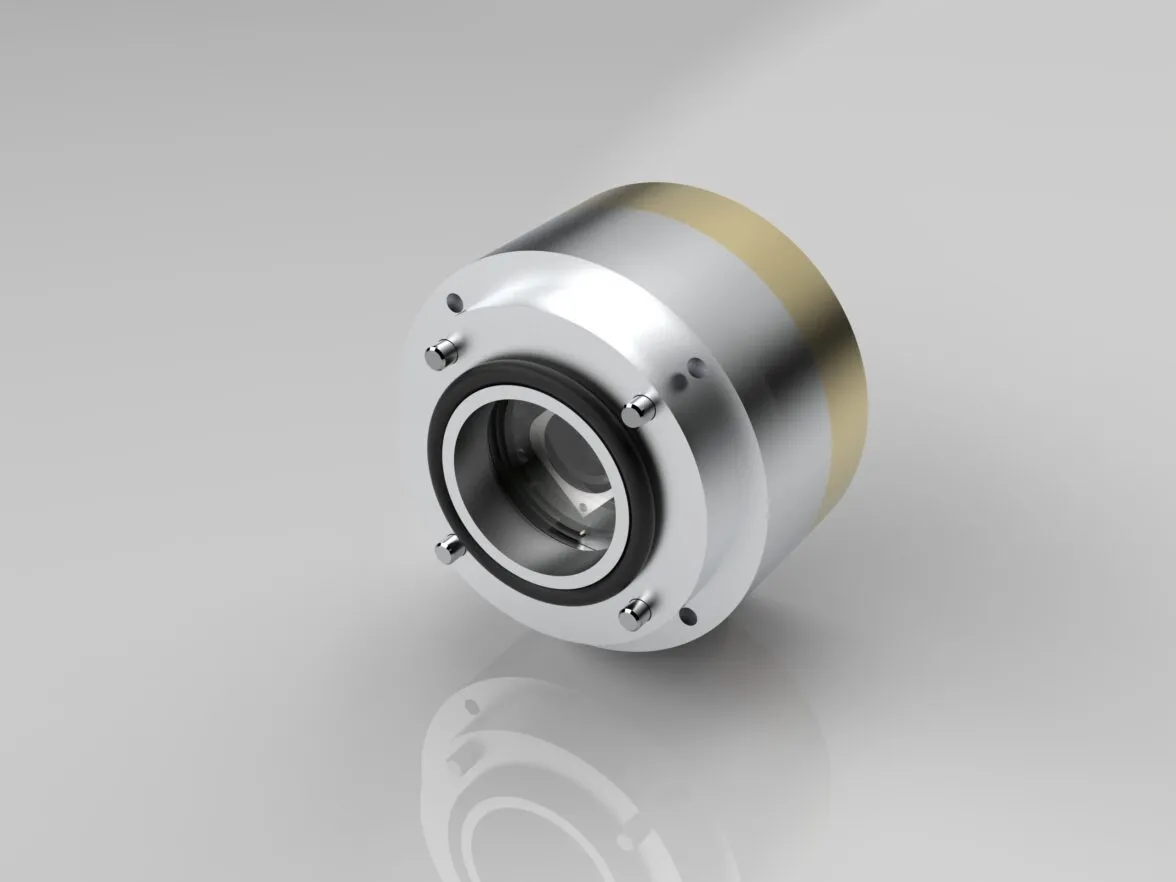

Deben can supply a TV chamberscope for your SEM using an internally or externally mounted high resolution camera with infra-red illumination. The chamberscope can be mounted on any available free port, even one not directly in line with the centre of the column. There is a choice of wide or narrow angle lenses which are user interchangable. Systems are available with or without monitors and with optional USB control and image display. Deben chamberscopes are available for most SEM models, contact us for a quotation and to check compatibility on your SEM.

By fitting a Deben Chamberscope to your SEM, you can get an instant view inside the chamber to see the position of detectors and samples. A Chamberscope is an essential accessory for any SEM – hitting a detector with a large sample can be an expensive mistake. The monitor system allows for easy positioning of the control box on the SEM console and manual adjustment of chamber illumination using push buttons on the front panel. The USB system allows for integrated installation on the SEM PC and is Windows compatible. Two separate Chamberscopes can be connected to provide different chamber views.
