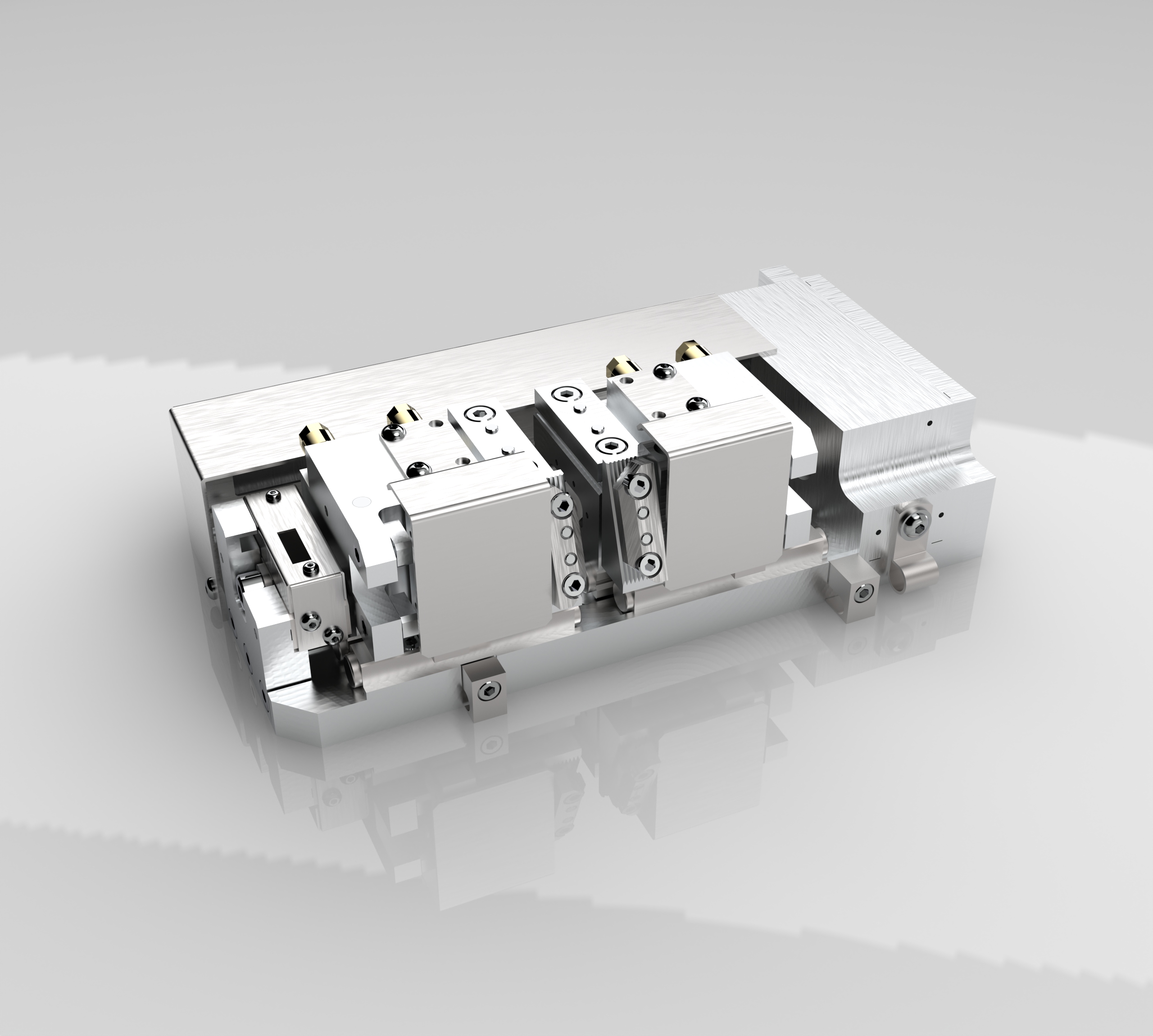

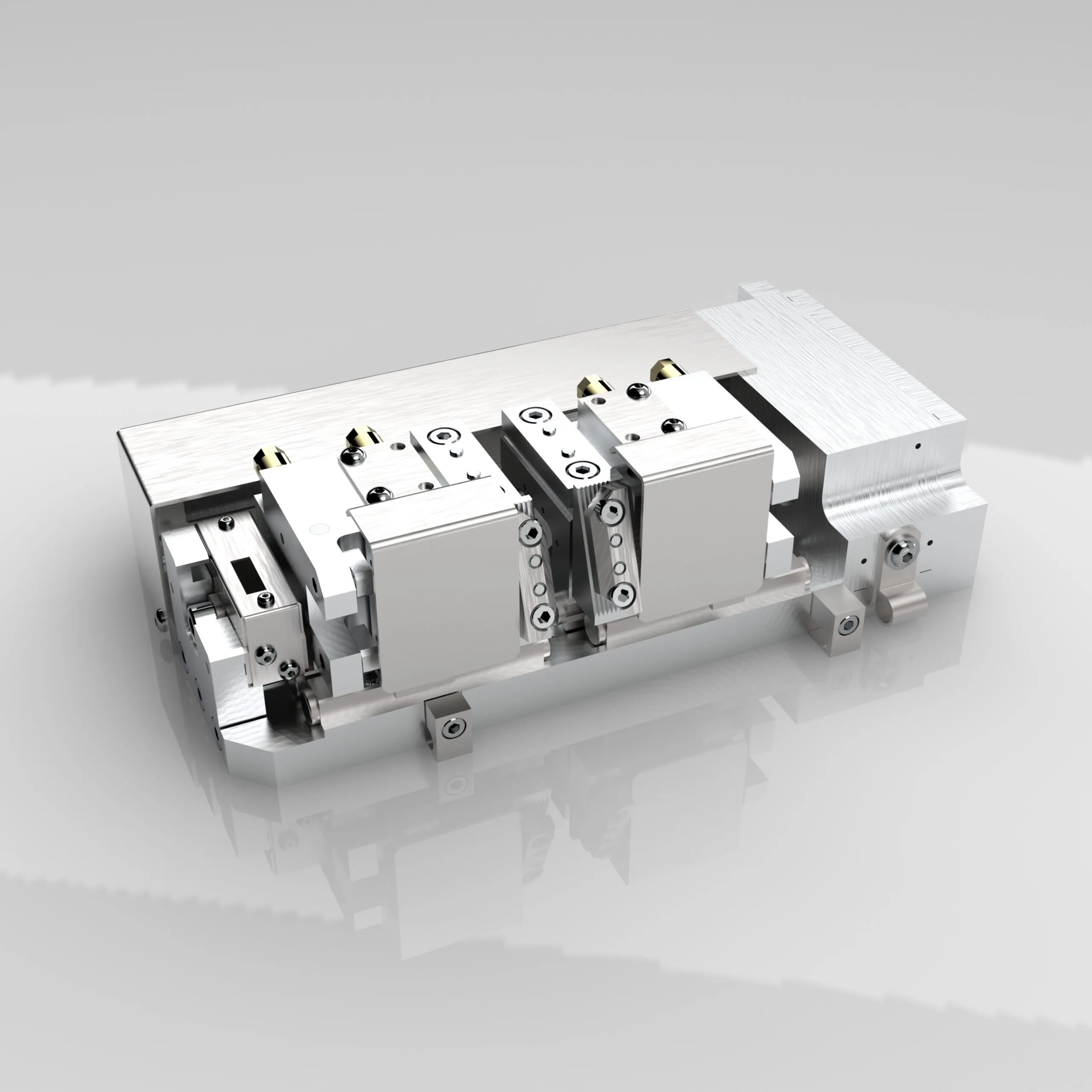

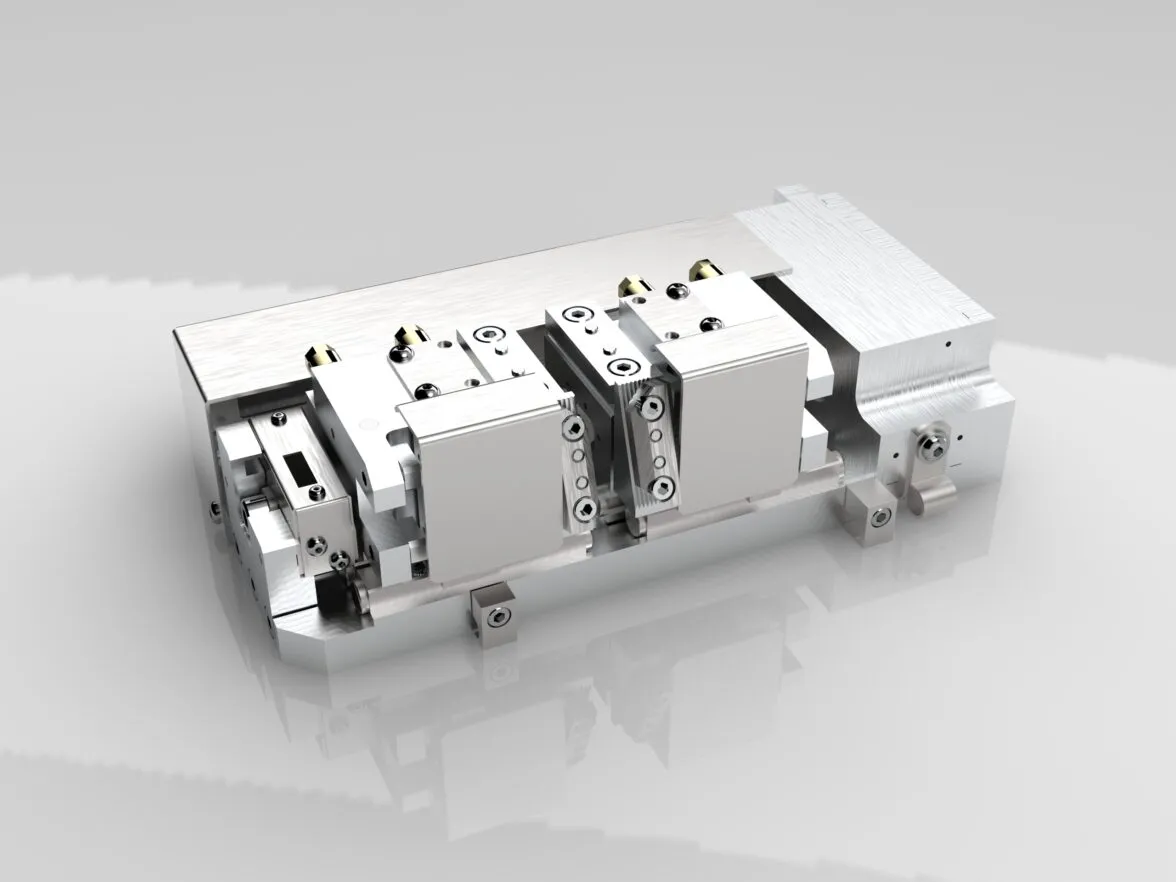

MT2000EH Product Details
The identification of slip bands, strain marks, deformations, dislocations and crystalline defects are now possible within your SEM under varying test conditions, allowing characterisation of sample microstructure in real-time. Whether you wish to run room temperature experiments or achieve high temperature compression and tensile testing, the MT2000EH EBSD stage delivers – fully optimised for both Horizontal SEM Imaging and EBSD.
With force resolution less than 0.003% FS, the 5kN EBSD stage from Deben offers dual motor control, user exchangeable loadcells and jaws, and options for bending jaws and compression cage.
The newly developed ‘Deben Test Suite’ software also allows full control of your stage and data, and is designed with ease-of-use in mind no matter what EBSD detector or SEM you use.
Deben’s in-house design and manufacturing teams also allow bespoke and custom clamps and jaws, to suit your sample needs.
Features
- Single leadscrew horizontally mounted tensile and compression testing stage
- Precision slides with stainless-steel leadscrew
- 2kN tensile to 2kN compression (continuous)
- 2kN loadcell, linearity ±1% of full-scale range
- Force resolution better than 01% FS
- Extensometer for position readout, resolution 100nm
- Standard speed range 02mm/min. to 0.2mm/min.
- Maximum travel: 10mm (10 to 20mm between jaws)
- Flat samples (horizontal and 70° tilted position)
- Heated jaws for EBSD position (70°):
- 600°C jaw temperature in vacuum
- Water cooled (including chiller)
- Standalone heating controller
- EBSD sample dimensions:
Gauge length 10-20mm,
sample clamping length 8mm each end, max. width 26mm
sample clamping length 12mm each end, max. width 36mm - Horizontal sample dimensions:
Gauge length 10-20mm,
sample clamping length 12mm each end, max. width 36mm
- EBSD sample dimensions:
- Approx dimensions: 181mm x 86mm x 52mm (L, W, H)
- Weight: 3kg approx.
- DEBEN TEST SUITE™ software control
